Laser Tube-Mill Line

The Laser Tube Mill how to forming is simmilar to stainless tube Mill, but it has seam tracking system with laser welding for high precision.
Laser tube Mill is over three times faster than SS tube Mill and usually used for heat heat exchanger and Aircylinder pipe.

Equipment photos

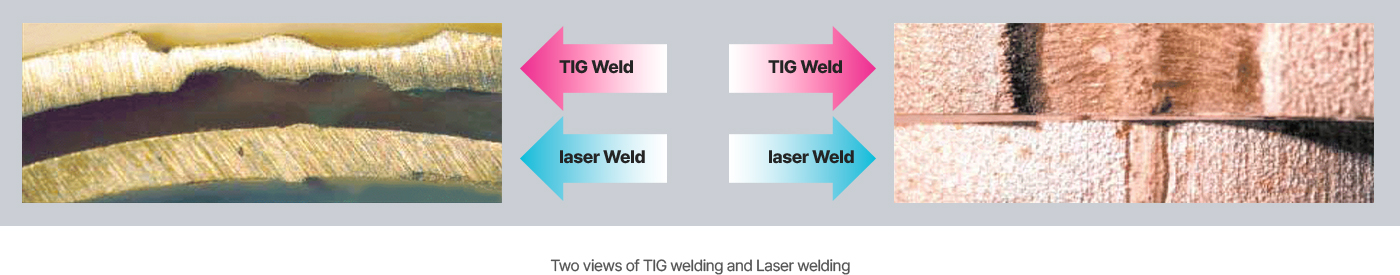

S7 Weld decay test

Properties of Laser welding

  • Just Laser welded
    (TP316L)

  • Laser welded and B.A Annealing
    (TP316L)

  • Laser welded = B.A + Cold drawing
    (TP316L)

Specifications

Model Pipe size(inch) Tube out Dia(mm) Thickness(mm)
KTM-LTM-010 1" ø9 - ø25.4 0.3 - 2.0
KTM-LTM-020 2" ø15.8 - ø50.8 0.5 - 3.0
KTM-LTM-030 4" ø50.8 - ø101.6 0.8 - 4.0
